灯体 Shape∶条形 Bar

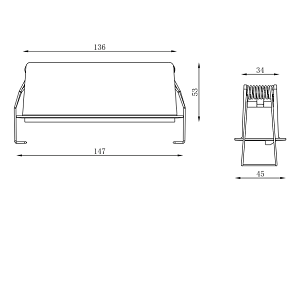

型号/尺寸Model/Dimension∶M613-4D03/150x45x50

材料 :

 灯体一体化高导热铝合金, 冷轧钢支撑主件，无外露明线，表面喷粉处理

Material:Integrated Lamp Body with High Thermal Conductivity Aluminum Alloy & Cold-Rolled Steel Structural Support, No Exposed Wiring, Powder-Coated Surface

结构:一体式无漏光设计

Structure: no light-leaking & solder free design

外观 : 表面无螺丝, 无露线

Appearance:No screw & wire outside

表面处理: 环保静粉末喷涂工艺, 持久耐磨

Treatment: Environmentally static powder coating ,durable & wearing

重量 Weight：0.25kg

颜色 Color：黑色/白色 Black/White

安装：嵌入式安装（开孔145*37）

光源 Light source: LED SMD

功率 Power：13W

电压 voltage：15V

电流 current：700mA

光束角 Beam Angle：洗墙配光，布光均匀，无杂光  Wall-Wash Optics, Uniform Light Distribution, Free from Stray Light

透镜：高透光率PMMA(92%)

Lens: High light transmittance up to 92%

色温 Color Temp.：3000K/3500K/

4000K/ 2700-6300K

色容差 Color tolerance：≤3

显色指数 Rendering index：Ra≥95


驱动:  220V恒流驱动

过流, 过压, 过热保护, 无频闪

Drive: 220V Constant current driver

    Over load & heat protection

    flicker free

调光：单灯调光/可控硅/0-10V/Dali 调光  ，1-100%无频闪调光

Dimming:Independent Continouosly

dimming/Silicon/0-10V/Dail dimming，1-100% Flicker-Free Dimming

调光深度 Dimming limits: 1-100%

控制：无线智能控制

Controlling: Wireless intelligent controlling
