一.产品功能与描述:

1. 行业磁吸式前框专利号∶201420766176.3/  ZL 2021 2 0831491.X

2. 专业光学设计，最小光束角达到10°±1°

3. 专利转动调节定位结构。高强度内六角转动主体，调节刻度标识，调节精准，定位可靠

4. 大防眩角无漏光设计，有效避免杂光对照明氛围的影响

5. LED光引擎无焊接专利组配设计，确保LED芯片接电可靠耐用

        ENCO LED Spot Light

1. The original magnetic front frame benefit the optical replacement Patent NO.201420766176.3

2. Professional optical design with the beam angle up to 10°±1°

3. wide anti-glare angle makes lighting more comfortable

4. Patented LED light engine-an interchangeable LED light module compliant to relevant Zhaga standards

5. Reliable adiustment 8 positioning system with free rototion and proiection,Adiust the scale indicating the angle

      二.产品特性:

        产品 描述
       1.光束角∶15°，26°，37°，48°，拉伸20X60°，60X20°，洗墙光束角

2. 芯片∶ LED SMD光源 ,九合一，功率 21W，显色指数∶>95，色温:3000K(±50K)/3500K(±50K)/4000K(±50K),(灵活转变色温：可以实现五种色温调节，2700K.3000K.3500K.4000K.5000K）色容差≤3,紫外线相对含量<1μW/lm,光源光通量:1421.7lm

3.驱动∶220-240V AC50/60Hz输入，高品质恒流驱动提供短路，过流保护

4. 控制∶单灯无极调光，DALI调光，无线蓝牙智能调光等多种控制方式,1-100%无频闪调光

5. 主材∶一体化压铸铝材质,无外露明线,表面喷粉处理

6. 安装∶六线三回路轨道，四线三回路轨道，三线单回路轨道安装

7. 可调角度∶水平转动365°,垂直转动90°

8. 光源寿命：≥51000h-L90,蓝光危害:达到无危险类(RG0)要求

9. 颜色∶白色，黑色

        Description
       1.Beam angle:15°，26°，37°，48°，20X60°，60X20°，Washing Light Beam Angle

2.  LED Qty:  SMD , 9in 1,  21W,CRI>95,Color femp: 3000K(±50K)/3500K(±50K)/4000K(±50K),（Flexible color temperature adjustment: Capable of achieving five levels of color temperature tuning2700K.3000K.3500K.4000K.5000K.),SDCM≤3，Relative UV content <1 μW/lm. Light source luminous flux1421.7lm

3. Driver:220-240V AC,50/60Hz;constant current LED driverwith short-circuit and over-load protection

4. Independant continuously dimmable, DAIdimmable& Wireless Bluetooth intelligent dimming dimmable module are available,1-100% Flicker-Free Dimming

5.Aluminum construction with outstanding thermal conductivity,No wire outside,Die cast yoke, High performance optical devices,Powder Coating Treatment.

6.  Six line 3-circuit track,four line 3-circuit track,Single-circuit track

7.Adjustable angle：365°rotation in horizon and 90°in vertical

8.  Working life: ≥51000h-L90，Blue Light Hazard: Complies with No Risk Group (RG0) requirements

9. Finish: White,Black

五.光学配件

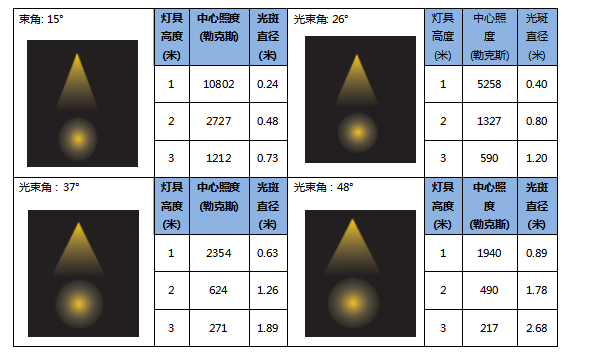

配光类型：可通过光学配镜来实现15°，26°，37°，48°，拉伸20X60°，60X20°，洗墙光束角

1.窄光束角镜片：15°            型号：LEP-1500R-96S

2.中光束角镜片：26°            型号：LEP-2600R-96S

3.宽光束角镜片：37°            型号：LEP-3700R-96S

4.超宽光束角镜片：48°        型号：LEP-4800R-96S

5.拉伸光束角镜片：60X20°  型号：LEP-6020R-96S

6.洗墙镜片：洗墙光束角       型号：LEP-3-96-X
7.防眩配件：1.防眩蜂网        型号：HM-3-96-BK
                 :  2.防眩扇叶       型号：BD2-140-BK

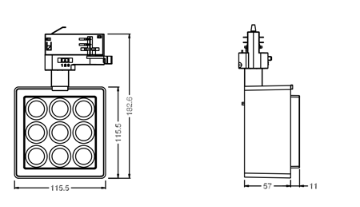

六.产品参数

 七.调光控制:

图例	控制		图例	控制
	单灯无极调光           Independant  Continouosly dimming			1-10V回路调光            1-10V Circuit dimming
	可控硅回路调光      Silicon circuit dimming			无线蓝牙智能调光                Remote intelligent  dimming

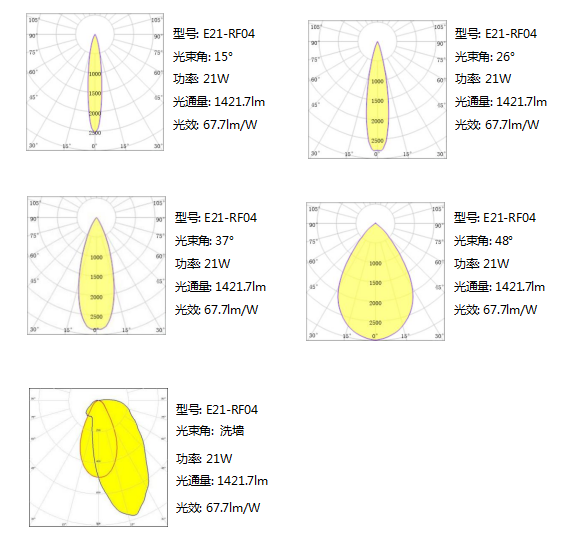

八.配光曲线:
